Powered Dermatomes & Blades

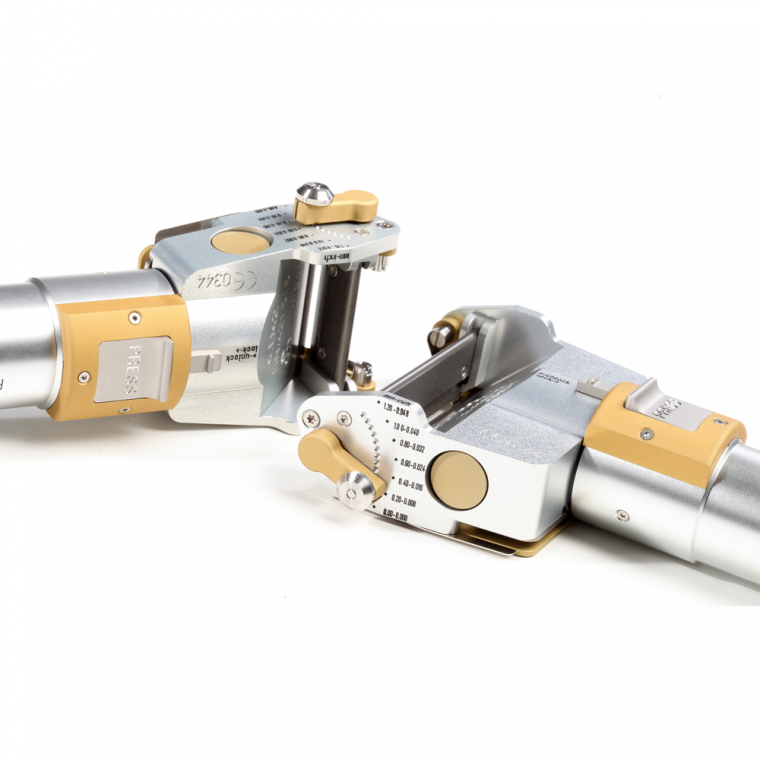

Humeca Dermatomes, D42 and D80 & Blades

Running at over 7000RPM these powerful and ergonomically designed, battery powered Dermatomes are supplied as complete kits, with re-chargeable Lithium-ION battery for over 75 minutes of continuous running time.  Easy to adjustable cutting depth, easy to hold and manoeuvre with no electric cables or air hose required, these are a must for all plastic surgery and burns units.  The dermatome blades are SAFE and easy to place, with NO right or wrong way around, as both sides are sharpened leading to better cutting and NO possible NEVER Actions where the blade is placed wrong way around.

D42 Powered Dermatome
  • The small 42mm cutting width of the D42 Dermatome allows precision cutting, especially in uneven / boney / joint zones and paediatric surgery
  • Cordless, battery operated and lightweight design offers optimum maneuverability and mobility
  • Precise thickness of the graft from 0.0 to 1.2 mm (0.000 – 0.048″) in 0.1 mm (0.004″) increments
  • Graft width of 42 mm (1.65″) assures optimum performance in combination with the MEEK technique
  • The use of width-reducing clamps on the dermatome head allow cutting of smaller graft widths
  • Battery and motor of the instrument are not sterilized, thus guaranteeing optimum durability
  • Thickness adjustment can be fixed to prevent accidental change of graft thickness during cutting
  • Safe and quick blade replacement
  • Powerful Li-Ion batteries with no memory effect allow long time cutting without intermediate charging
D80 Powered Dermatome
  • 80mm (3.2″) cutting width of the D80 dermatome allows for a uniform and even cutting surface even when used over difficult uneven surfaces.
  • Ideal for split thickness skin grafts taken from the scalp
  • 80mm STSG are ideal for the Humeca and Zimmer skin graft boards (dermacarriers)
  • Cordless, battery operated and lightweight design offers optimum manoeuvrability and mobility
  • Precise thickness of the graft from 0.0 to 1.2 mm (0.000 – 0.048″) in 0.1 mm (0.004″) increments
  • The use of width-reducing clamps on the dermatome head allow cutting of smaller graft widths
  • Battery and motor of the instrument are not sterilized, thus guaranteeing optimum durability
  • Thickness adjustment can be fixed to prevent accidental change of graft thickness during cutting
  • Safe and quick blade replacement
  • Powerful Li-Ion batteries with no memory effect allow long time cutting without intermediate charging

For more information on the Humeca range visit https://humeca.com/cordless-dermatomes-and-blades/

Dermatome Blades For Powered Dermatomes – Humeca, Zimmer, B Braun, Padgett

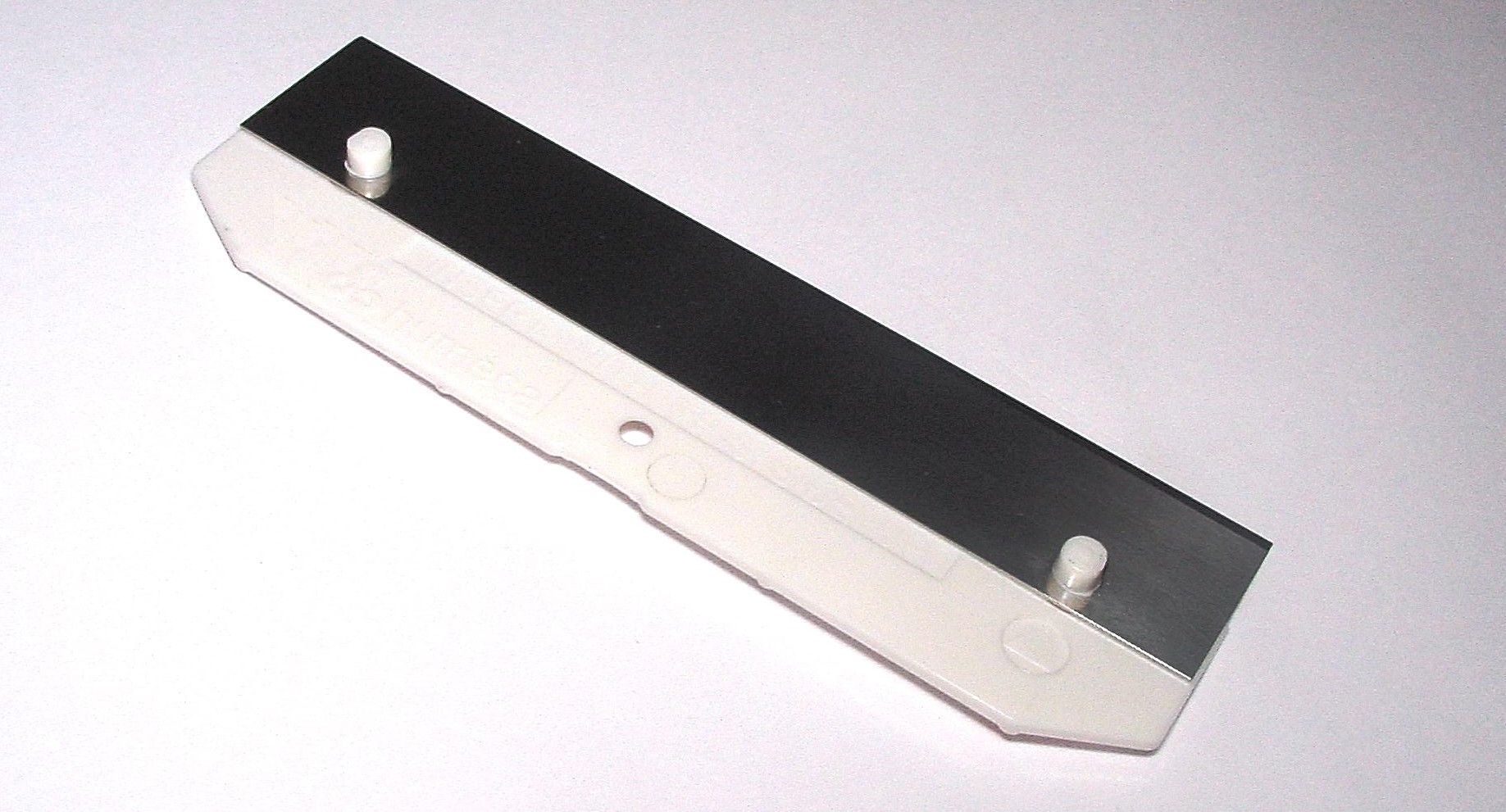

Zimmer dermatome bladeDermatome blades for Zimmer Air (8801) and Electric dermatomes (8821), sterile, single-use cost effective.  Order Ref 5.BLZM10 for prices please contact https://www.eurosurgical.co.uk/contact/

Eurosurgical supply Powered Dermatome blades for ALL leading makes of Dermatome.

The Humeca range of Dermatome blades are cost effective and are made to the highest quality level of German manufacturing.

  • Precision facet grinded without burrs for durable performance.
  • Separately packed in a pouch with safety sleeve.
  • Gamma Radiation sterilized.
  • Supplied in boxes of 10 pcs.
  • Attractively priced.

Blades also available for the following dermatomes

  • Aesculap / B Braun Ref 5.BL4245
  • Padgett Ref 5.BLPG10
  • Zimmer (air and electric codes 8801 and 8821) Ref 5.BLZM10
Downloads:

Instructions for Use and Maintenance

For more information and ordering details; Euro Humeca Blades
